Matched Ball & Seat Sets
Matched ball and seat sets are paired fluid-control components specified together so their geometry, materials and contact can be evaluated as an interface. They differ from a complete tested valve and from independently purchased loose parts. Define the ball, seat, housing interfaces, medium, pressure cycle, orientation, leakage criterion and inspection responsibility; this candidate project requires confirmed component sourcing, pairing and validation before supply is agreed.
- Material / construction
- Ball and seat materials specified together; pairing and validation by drawing review
- Specification basis
- Drawing, diameter & acceptance
- Order basis
- Sample & production quantities
Matched Ball & Seat Sets: selection overview
A ball and seat function through their interface, so isolated dimensional compliance is not the only acceptance question. Seat profile, ball form, surface integrity, material pairing and retention all affect the contact. A matched pair may reduce uncertainty about the interface, but it does not establish the pressure containment, actuation or qualification of the surrounding valve or pump. This candidate range should therefore define the exact deliverable: two components, a retained insert, or a more complete cartridge. State who supplies and inspects each part and what test demonstrates the required result before making a commercial commitment.
Define what matched means for the project
Specify the geometry, materials and inspection that establish the pairing. If individual pairs must remain together after acceptance, include identification and packing. If interchangeability is required, define that separately rather than assuming it from the word matched. A dimensional report, contact assessment and leakage test answer different questions. Agree the required evidence and responsibility before sample manufacture so the proposal does not promise an undefined improvement in sealing or a universally interchangeable set.
Separate component leakage from complete-valve qualification
State the test medium, differential pressure, temperature, orientation, duration and acceptable leakage using the project specification. Define the fixture and housing interface, because support and alignment can influence the result. A pair tested in one fixture is not automatically a rated finished valve. Identify any further system-level testing required after installation, including pressure containment, operating response or endurance, and keep those responsibilities visible in the supply scope.
Matched Ball & Seat Sets specifications
Define the component using the requirements below. Include your target values and acceptance method; the quotation records the agreed material, geometry, inspection and supply scope.
| Requirement | What to specify | Why it matters |
|---|---|---|
| Deliverable boundary | Identify loose pair, retained insert or cartridge and responsible suppliers. | The supply scope must distinguish components from a complete valve. |
| Interface definition | Provide ball, seat, bore, mounting and retention drawings. | Alignment and support can affect the contact despite compliant individual dimensions. |
| Pairing policy | State matched-pair identification or interchangeability requirements. | These are different acceptance and packing strategies. |
| Test basis | Define fluid, pressure, temperature, orientation, time and leakage criterion. | A meaningful result requires conditions and responsibility, not an unqualified zero-leakage statement. |
Drawing and dimensional acceptance
Provide the drawing revision and nominal dimensions with units. Identify critical form, surface and fit requirements individually; a material designation alone does not define a finished component. Where an existing sample is the reference, describe wear and confirm the intended acceptance limits.
Order and inspection scope
Separate sample quantities from production demand. State the required inspection documents, lot identification, cleanliness and packaging. Any proposed substitute or change to the component specification should be reviewed before approval, with the quotation confirming the agreed scope.
Numeric performance values, when needed, must identify their material, conditions and evidence. Typical raw-material data should not be treated as guaranteed finished-component performance.
Matched Ball & Seat Sets applications
Start with the actual mechanism and exposure conditions. Each use below identifies the information needed for a useful technical review.

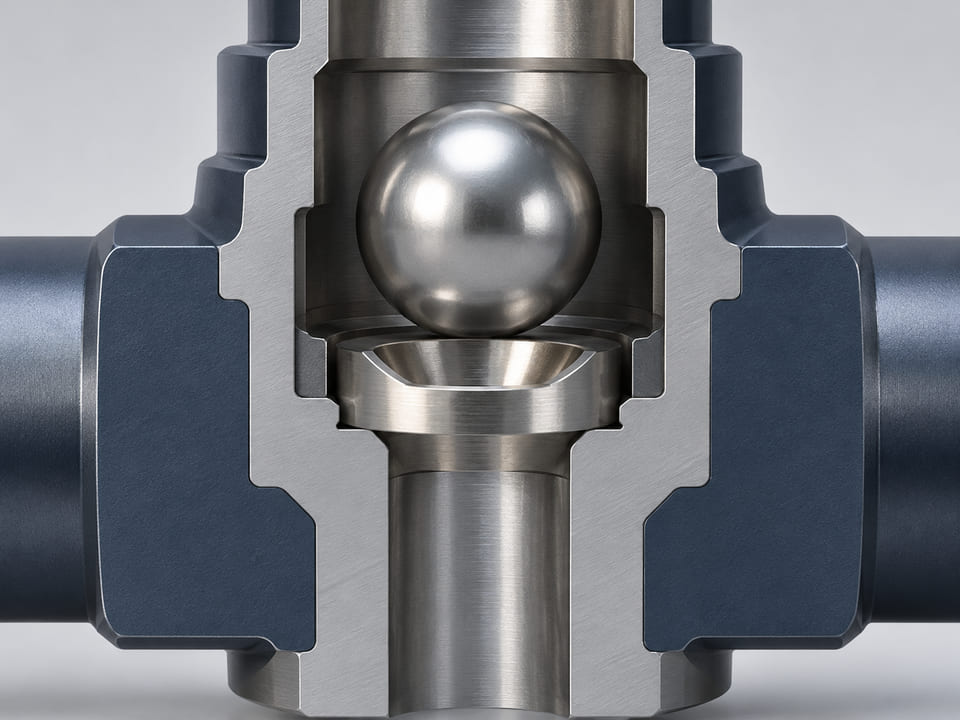

Metering pump check components
A paired ball and seat may be reviewed where repeatable closure is important to the dosing mechanism. Specify the medium, deposits, installed orientation and pressure sequence. Test the interface after relevant exposure and cycling, while assessing the complete pump separately for its dosing and operating performance.
Compact instrument fluid paths
A small paired interface may be considered where surface quality, cleanliness and assembly access are tightly controlled. Define whether the deliverable includes a sleeve or retained cartridge. Component cleanliness and leak evidence should match the actual fluid path, with a separate check for the assembled instrument's function.
Replacement or redesigned valve inserts
A drawing-based set can support a replacement review when existing parts or approved samples define the required interface. Identify whether the original system depends on matched pairs or interchangeable components. Revalidate the housing, closure and complete assembly so a nominally similar pair does not introduce a new alignment or contact problem.
Compare Matched Ball & Seat Sets alternatives
Compare the requirement that drives the decision. A matching nominal diameter or similar appearance does not establish material or functional equivalence.
| Alternative | When to review it | Tradeoff to assess |
|---|---|---|
| Valve balls | Choose a ball-only component review when the existing seat is retained and its material, geometry and condition are already defined. | Ball-only supply cannot establish a new matched interface; validate the retained seat and complete assembly rather than assuming a replacement diameter guarantees closure. |
| Rubber-coated balls | Compare a resilient surface concept where the seat and process may benefit from a different contact and moving-mass balance. | Coating, core, bond and deformation create additional requirements; this is an interface redesign rather than an equivalent substitution for a hard paired set. |
| Zirconia spheres | Review a ceramic ball component where the seat is separately specified and zirconia's material profile suits the intended fluid and contact. | A sphere's material and precision do not establish a paired-set leakage result; the actual seat geometry and test remain necessary. |
These links open the corresponding product pages in this collection. Final selection depends on your complete specification and the agreed validation.
Matched Ball & Seat Sets FAQs
What does matched ball and seat mean?
It must be defined by the project. The term may refer to coordinated geometry, a specific contact assessment or individually accepted pairs. State the required inspection, test and identification. It should not be used as an unqualified promise of zero leakage or interchangeability across all components.
Does a matched set count as a complete valve?
No. A ball and seat pair does not automatically include the body, retention, actuation or pressure-containment qualification. Define the actual deliverable and system interfaces. Component test evidence can support the assembly review, but the finished valve or pump needs its own applicable validation.
Can individual balls and seats be mixed later?
Only if interchangeability has been specified and demonstrated. An individually matched or accepted pair may need to remain together, with identification and packing that preserve the relationship. Define this before sampling so the production, inspection and replacement strategy matches the intended maintenance or assembly method.
Can zero leakage be guaranteed from this page?
No unrestricted leakage claim is made. Leakage acceptance needs the test medium, differential pressure, temperature, time, orientation and method. The project must define the criterion and fixture, then confirm the result for the supplied set and any additional complete-valve qualification required after installation.
Which materials should be paired?
Select from the medium, temperature, wear, impact, contact and cleanliness requirements, with grade-specific evidence. Hard ceramic, metal and resilient concepts create different interfaces. No universal pairing is best for every fluid or pressure cycle, so describe the actual operating problem before selecting ball and seat materials.
What is needed for a paired-set quotation?
Provide ball and seat drawings, housing interfaces, material requirements, quantities and pairing policy. Add medium, operating cycle, leakage test and required documents, and state who validates the finished assembly. This makes the candidate's sourcing and test route reviewable before component scope or commercial terms are confirmed.
Request a quotation
Turn the Matched Ball & Seat Sets requirements into a clear enquiry for MEITUO Balls.
- Define the material and geometry.
- Describe the application and acceptance.
- Separate sample and production demand.
The quotation confirms feasibility, supply scope, inspection documents and commercial terms. Generated illustrations are not evidence of available stock or completed validation.
