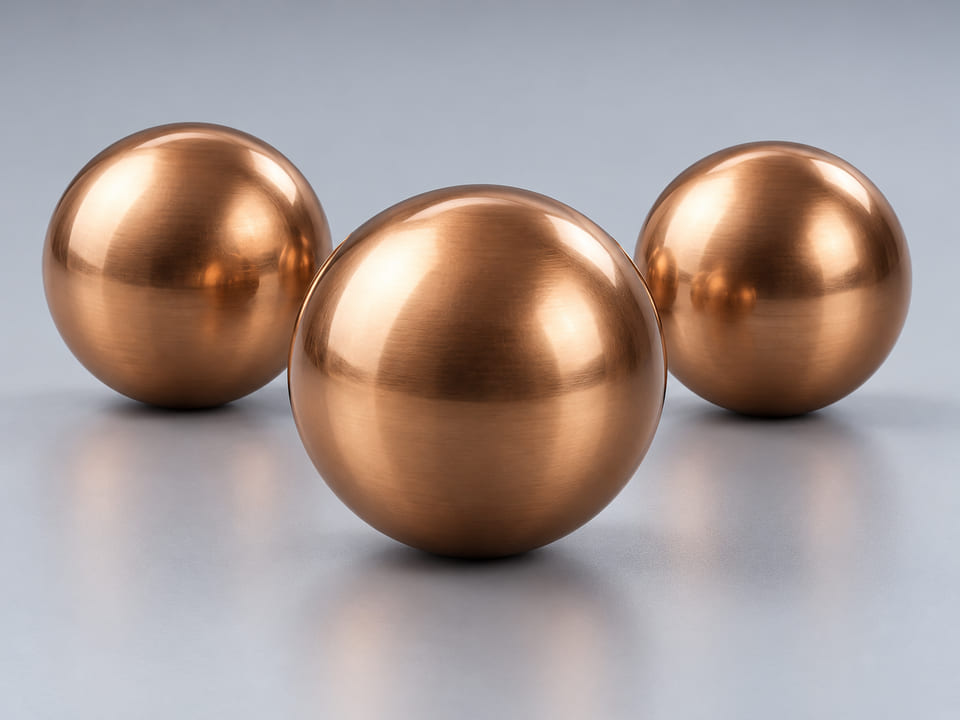

Phosphor Bronze Balls
Phosphor bronze balls are copper-tin-phosphorus alloy spheres considered for selected wear-oriented, locating and mechanical contacts. Identify the exact alloy, such as a specified CuSn grade, and its supplied condition before comparing it with brass or pure copper. Confirm diameter, contact load, mating surface and exposure. Typical properties from strip, wire or bar are material references and do not independently establish the performance of a finished sphere.
- Material / construction
- Specified copper-tin-phosphorus bronze grade and condition
- Specification basis
- Drawing, diameter & acceptance
- Order basis
- Sample & production quantities
Phosphor Bronze Balls: selection overview
Phosphor bronze is a useful family to assess when pure copper's conductivity-led selection is not the main objective and the component needs a defined non-ferrous contact. Tin level and supplied condition distinguish the available grades; CuSn5, CuSn6 and CuSn8 should not be reduced to one generic bronze description. A sphere also has a different job from the strip springs commonly associated with this alloy family. It should not inherit a spring-fatigue claim from a different product form. Evaluate the ball's own geometry, surface and complete contact pair against the mechanism's requirements.
Specify the CuSn grade and condition
Use the exact material designation and standard from the drawing. If alternatives with different tin content are being considered, compare the required mechanical, electrical and environmental criteria rather than assuming a higher number is always better. State temper or hardness where it matters to the contact. Material data from a spring strip can inform a review, but it should not be presented as a verified strength or fatigue result for the sphere being quoted.

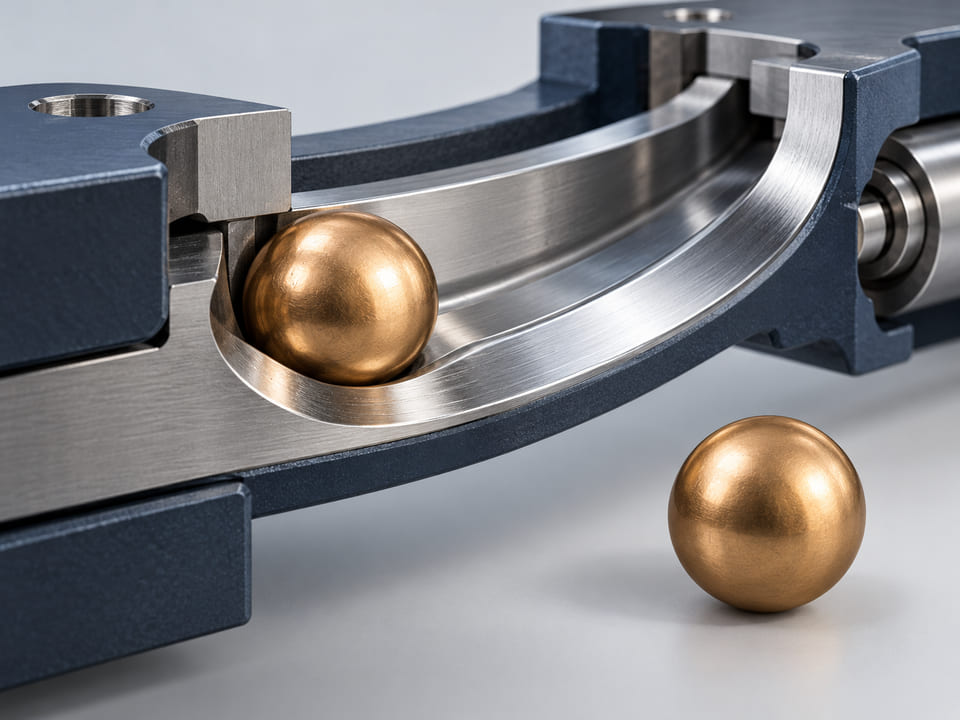

Evaluate the mating surface and lubricant
Describe whether the sphere rolls, locates or seats against another material. Include contact pressure or force, movement and lubricant. A non-ferrous ball can shift wear or marking into the opposing component; the pair needs evaluation. In a fluid contact, add the complete medium and cleaning cycle. Where the mechanism operates without oil, make that explicit, because dry-contact acceptance cannot be inferred from a generally favorable description of bronze wear behavior.
Phosphor Bronze Balls specifications
Define the component using the requirements below. Include your target values and acceptance method; the quotation records the agreed material, geometry, inspection and supply scope.
| Requirement | What to specify | Why it matters |
|---|---|---|
| Bronze identity | Name the CuSn or other exact phosphor-bronze grade and standard. | Separates related alloys with different tin and phosphorus requirements. |
| Condition and hardness | Define temper or hardness acceptance where relevant. | Avoids importing spring-strip properties into an unspecified finished sphere. |
| Contact pair | Give mating material, load, motion and lubricant. | Makes the wear and indentation evaluation specific to the mechanism. |
| Geometry and exposure | Provide diameter, form, surface and medium or cleaner. | Connects dimensional fit with environmental compatibility. |
Drawing and dimensional acceptance
Provide the drawing revision and nominal dimensions with units. Identify critical form, surface and fit requirements individually; a material designation alone does not define a finished component. Where an existing sample is the reference, describe wear and confirm the intended acceptance limits.
Order and inspection scope
Separate sample quantities from production demand. State the required inspection documents, lot identification, cleanliness and packaging. Any proposed substitute or change to the component specification should be reviewed before approval, with the quotation confirming the agreed scope.
Numeric performance values, when needed, must identify their material, conditions and evidence. Typical raw-material data should not be treated as guaranteed finished-component performance.
Phosphor Bronze Balls applications
Start with the actual mechanism and exposure conditions. Each use below identifies the information needed for a useful technical review.

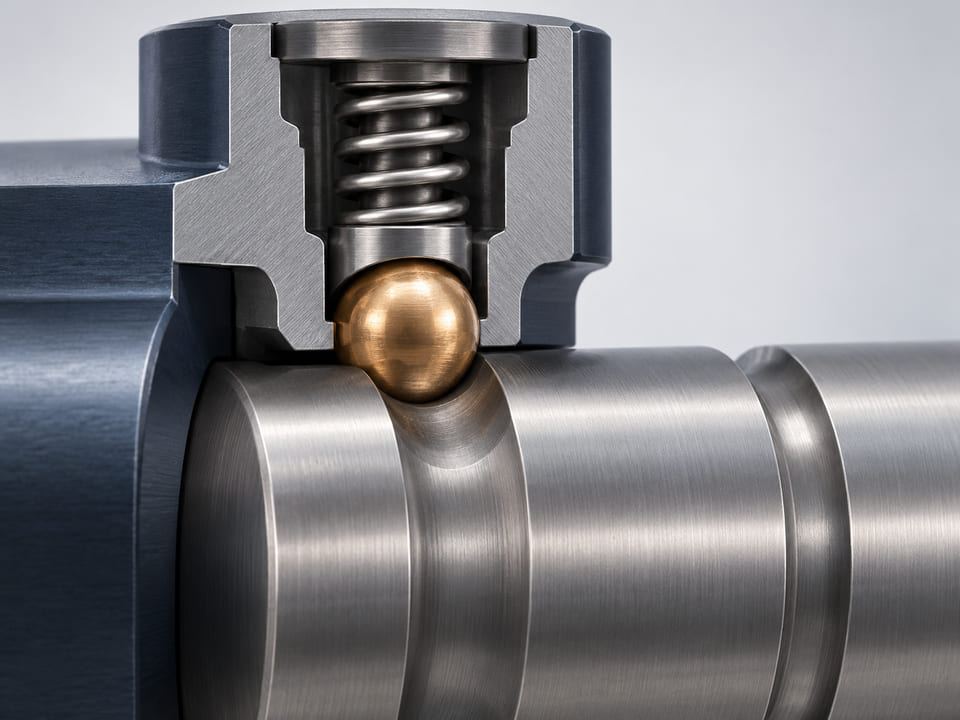

Detents and locating contacts
A specified bronze sphere can be considered for a contact where its non-ferrous material system and condition meet the design. Check repeated marking and the stability of the locating force over the planned cycles. The mating steel or other surface remains part of the specification.
Specialist rolling and sliding mechanisms
For a low-load guided contact, the material may be evaluated alongside brass or other candidates. Define the required motion and contamination limits. A good fit at assembly does not establish long-term wear performance, especially if the contact changes from lubricated to dry.
Instrument and valve components
A phosphor bronze ball may serve a selected contact within an instrument or fluid assembly. Confirm chemical compatibility and any conductivity or magnetic-function requirement independently. Use the component's own functional test as the basis for approval.
Compare Phosphor Bronze Balls alternatives
Compare the requirement that drives the decision. A matching nominal diameter or similar appearance does not establish material or functional equivalence.
| Alternative | When to review it | Tradeoff to assess |
|---|---|---|
| Brass | Compare a copper-zinc candidate when the defined mechanical contact and exposure can be satisfied without the specified copper-tin-phosphorus alloy. | The alloy systems and material conditions differ; approve wear, deformation and chemistry rather than relying on a similar bronze-yellow appearance. |
| Pure copper | Review a high-conductivity copper grade when electrical or thermal transfer drives the design more strongly than a wear-oriented alloy choice. | Pure copper can respond differently under contact load, while alloy data cannot be converted directly into a full electrical-contact rating. |
| Aluminium bronze | Consider a copper-aluminium grade for a project emphasizing its particular strength or environmental balance rather than the selected phosphor bronze. | The exact alloy and condition govern; compare the complete contact and medium instead of assuming all bronze materials share equivalent service behavior. |
These links open the corresponding product pages in this collection. Final selection depends on your complete specification and the agreed validation.
Phosphor Bronze Balls FAQs
Are CuSn5, CuSn6 and CuSn8 equivalent?
No. They identify different alloy choices under their governing references. Use the grade required by the drawing and approve any alternative against the actual mechanical, electrical and environmental requirements. A shared phosphor-bronze heading does not establish interchangeability.
Does a bronze ball have spring-like fatigue performance?
Do not transfer that claim from spring strip to a sphere. Fatigue depends on product form, condition and loading. For a ball, define the actual contact and cycle requirement, then evaluate the finished part and mating component together.
When should phosphor bronze be compared with brass?
Compare them when the component needs a non-ferrous sphere and material choice is open. Use the same load, lubricant, medium and surface criteria. Specify the exact alloy and condition on each option to make the comparison meaningful.
Can it operate without lubrication?
That depends on the contact pair, load, movement and acceptable wear. A general bronze-family wear description cannot approve every dry mechanism. State the dry condition explicitly and use a representative functional or wear evaluation when necessary.
Are these balls electrically conductive?
The alloy is conductive, but its bulk behavior differs from pure copper and does not establish an assembly rating. If conductivity matters, specify the required test, surface state, contact force and temperature for the actual interface.
What should a bronze-ball enquiry contain?
Include the exact grade, condition, nominal diameter, form or surface criteria, quantity and mating-contact details. Describe the lubricant or medium and any electrical requirement. Add the inspection documents and sample test needed for component approval.
Request a quotation
Turn the Phosphor Bronze Balls requirements into a clear enquiry for MEITUO Balls.
- Define the material and geometry.
- Describe the application and acceptance.
- Separate sample and production demand.
The quotation confirms feasibility, supply scope, inspection documents and commercial terms. Generated illustrations are not evidence of available stock or completed validation.
