Polypropylene Balls
PP balls are polypropylene spheres considered for compatible chemical handling, buoyant elements and low-load fluid-control components. Their low mass and low moisture uptake are useful, but sustained contact, operating temperature and resin formulation determine the application boundary. Define the exact compound, solid or hollow construction, diameter, liquid density, cleaning cycle and required closing or floating response before selecting polypropylene for an industrial assembly.
- Material / construction
- Polypropylene; homopolymer or copolymer and additives identified
- Specification basis
- Drawing, diameter & acceptance
- Order basis
- Sample & production quantities
Polypropylene Balls: selection overview
Polypropylene provides a different balance of fluid compatibility, mass and thermal behaviour from the engineering plastics used in rigid precision contacts. This makes it useful to assess in chemical dosing or simple float mechanisms, provided the design accepts its load-dependent deformation. Resin family, copolymer choice and additives should be visible in the specification. A white polypropylene sphere is not automatically a food-contact component, and a polymer's suitability for one cleaning cycle cannot establish repeated sterilisation capability. Link the material decision to the actual fluid, contact and exposure duration.
Choose the compound for the complete process
Identify whether homopolymer or copolymer is required and disclose any stabiliser, pigment or filler restriction. Include sunlight, process liquid and cleaning chemistry in the grade review. If the application needs regulated contact, specify the intended use and documentation at the start. This avoids choosing a resin for its generic chemical-resistance description, then discovering that the proposed colourant or formulation cannot meet the required contact or ageing evidence.
Design around low mass and deformation

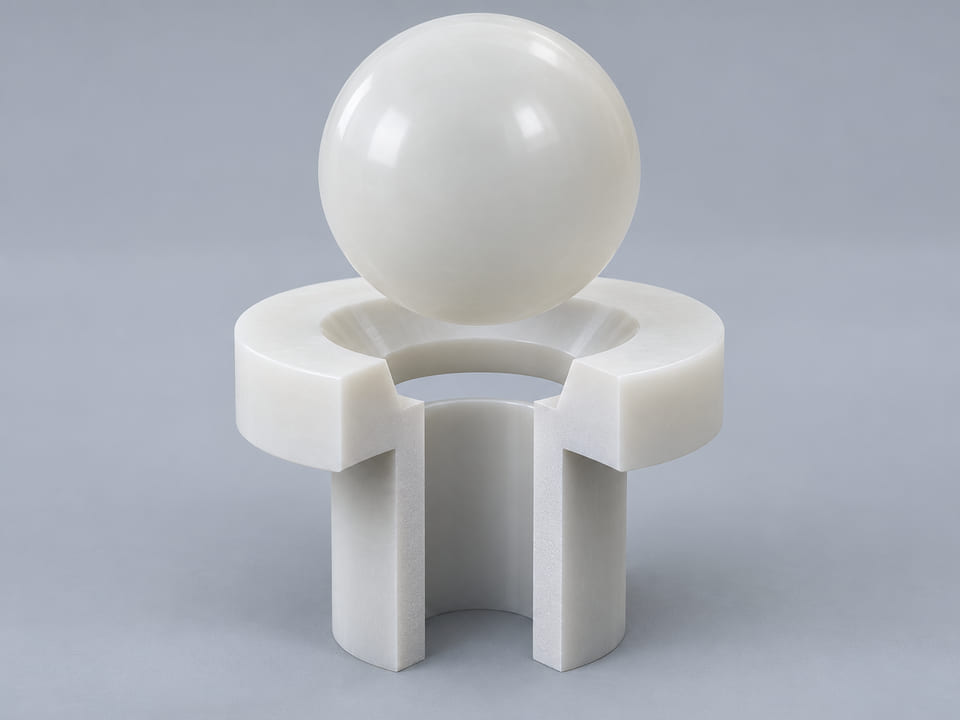

A light sphere can respond differently from a metal or dense polymer ball in the same valve orientation. Include the fluid density, flow direction and closing mechanism, then evaluate contact under the actual temperature and pressure cycle. Where the sphere rests for long periods, inspect the seat contact after dwell. The objective is reliable movement or closure, not the smallest achievable room-temperature diameter tolerance regardless of service deformation.
Polypropylene Balls specifications
Define the component using the requirements below. Include your target values and acceptance method; the quotation records the agreed material, geometry, inspection and supply scope.
| Requirement | What to specify | Why it matters |
|---|---|---|
| Resin formulation | State PP homopolymer or copolymer and additive restrictions. | The material name alone does not identify impact, ageing or contact-compliance characteristics. |
| Float or closure function | Define liquid density, orientation and the desired movement. | Low mass affects operation and can change the result of a replacement design. |
| Sustained contact | Provide seat pressure, dwell duration and working temperature. | Deformation may govern the long-term result more than initial room-temperature fit. |
| Cleaning and contact scope | Identify all cleaners and any required documentation. | A compatible process liquid does not establish suitability for every cleaning or regulated-contact condition. |
Drawing and dimensional acceptance
Provide the drawing revision and nominal dimensions with units. Identify critical form, surface and fit requirements individually; a material designation alone does not define a finished component. Where an existing sample is the reference, describe wear and confirm the intended acceptance limits.
Order and inspection scope
Separate sample quantities from production demand. State the required inspection documents, lot identification, cleanliness and packaging. Any proposed substitute or change to the component specification should be reviewed before approval, with the quotation confirming the agreed scope.
Numeric performance values, when needed, must identify their material, conditions and evidence. Typical raw-material data should not be treated as guaranteed finished-component performance.
Polypropylene Balls applications
Start with the actual mechanism and exposure conditions. Each use below identifies the information needed for a useful technical review.
Chemical dosing components
A polypropylene sphere may be considered in a compatible dosing circuit where low mass and non-metallic contact are useful. Check the concentrate and any dilution stage separately. Retain the proposed seat geometry in sample tests because changes in contact width can alter deformation and sealing even when the resin is chemically suitable.

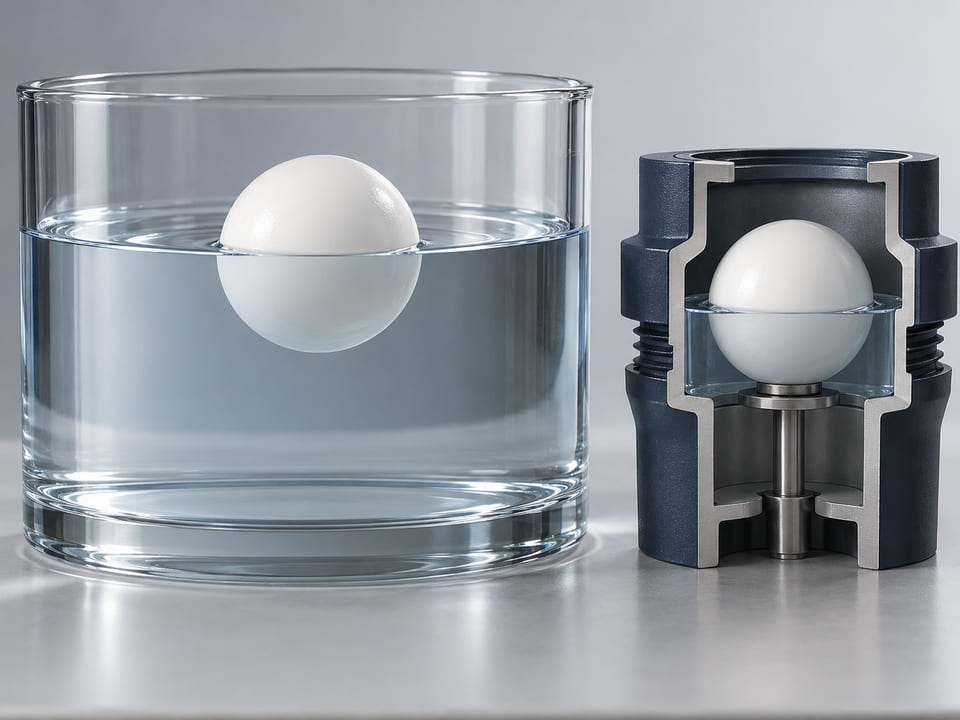

Float and level devices
PP can be reviewed for floating elements when its effective density suits the liquid. State whether construction is solid or hollow, and define the required position or movement. Deposits, foam and changes in fluid composition should be included because the device must continue moving freely after actual service exposure.
Light industrial mechanisms
In applications prioritising low mass and a compatible environment, PP may form a non-metallic moving element. It is not a default substitute for a rigid bearing ball. Review sustained loading, wear and heat, and use a practical movement test to establish whether the polymer contact remains acceptable over the specified duty.
Compare Polypropylene Balls alternatives
Compare the requirement that drives the decision. A matching nominal diameter or similar appearance does not establish material or functional equivalence.
| Alternative | When to review it | Tradeoff to assess |
|---|---|---|
| HDPE | Compare polyethylene when buoyancy, chemical compatibility and economical low-load construction remain central to the application review. | Resin, temperature and sustained deformation still require separate validation; similar appearance does not make the two polyolefins interchangeable. |
| PVDF | Review PVDF when the specific fluid and contact conditions motivate a fluoropolymer alternative to polypropylene. | Reassess mass, cost and seat behaviour; a different polymer family changes the complete moving component rather than only chemical resistance. |
| PTFE | Consider PTFE where an exact medium requires another chemical-compatibility option and a softer contact can be accommodated. | Evaluate creep and dimensional response under the actual seat load, since fluid resistance alone does not establish a successful seal. |
These links open the corresponding product pages in this collection. Final selection depends on your complete specification and the agreed validation.
Polypropylene Balls FAQs
Are polypropylene balls chemically resistant?
PP is considered for many compatible liquid duties, but the answer depends on the exact chemical, concentration and temperature. Include cleaning and long-term exposure in the review. No general material-family description can establish compatibility with every acid, oxidiser, solvent or mixture used in an industrial process.
Can PP balls float?
A suitably specified PP sphere may provide buoyancy in a liquid of greater effective density. Confirm the resin, additives, construction and fluid condition. Define the required immersion or motion and test the assembly, especially where contamination or composition changes could cause sticking or alter the floating response.
Is PP better than HDPE?
Neither material is universally better. Compare the actual resin grades for the fluid, temperature, impact and sustained-contact requirements. The useful choice is the one that meets the validated function at an acceptable commercial basis, rather than a general ranking of two lightweight polymers.
Can polypropylene balls be steam sterilised?
Do not assume repeated steam compatibility from the material name. The compound, temperature, cycle duration, loading and required life must be reviewed together. State the cleaning or sterilisation procedure and validate the finished component, including dimensions and movement after the relevant number of cycles.
Are white PP balls food grade?
Colour is not evidence of compliance. Identify the exact formulation, intended contact, market and documents required. The resin, additives and finished-product manufacturing route must be included in the review. A generic white sample or another supplier's declaration cannot establish conformity for the proposed MEITUO component.
What should be included in a PP quotation request?
Include the resin requirement, construction, ball geometry, quantity, fluid and operating cycle. Add the desired floating or closing behaviour, seat detail and required documents. If the design is still open, describe the functional problem so material alternatives can be compared without inventing a standard size or supply promise.
Request a quotation
Turn the Polypropylene Balls requirements into a clear enquiry for MEITUO Balls.
- Define the material and geometry.
- Describe the application and acceptance.
- Separate sample and production demand.
The quotation confirms feasibility, supply scope, inspection documents and commercial terms. Generated illustrations are not evidence of available stock or completed validation.
Continue your material review
Engineering references and illustration notes
Material-family references support screening. The exact grade, finished geometry and application acceptance govern an actual enquiry.
CGI illustrations explain product, application or structure concepts. They are not photographs, measured micrographs, assembly drawings or inspection results.
